Are you tired of using bulky and outdated computers that take up too much space and slow down your work? Look no further, the 13.3" Capacitive/10-point touch Screen Industrial Panel PC Rockchip RK3568B2 is here to revolutionize the way you work. This powerful and compact computer is designed to provide you with a fast and efficient way to manage your tasks, making it perfect for industrial, commercial, and residential use. With its 13.3" capacitive touch screen and 10-point touch functionality, you can easily navigate and interact with your computer, making it a great solution for a wide range of applications.

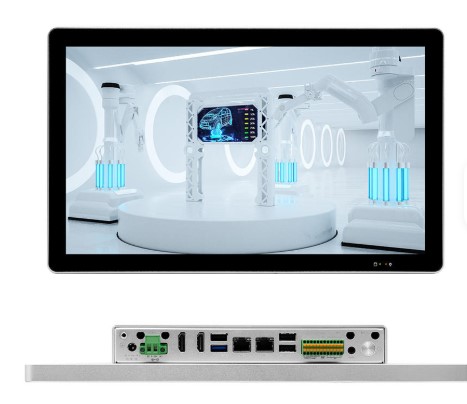

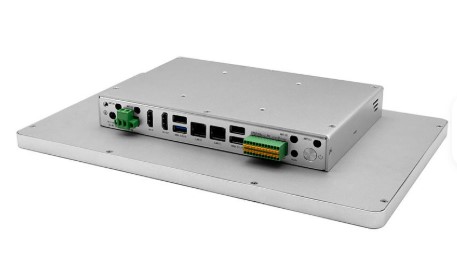

13.3" Capacitive/10-point touch Screen Industrial Panel PC Rockchip RK3568B2
The 13.3" Capacitive/10-point touch Screen Industrial Panel PC Rockchip RK3568B2 solves the problem of limited space and outdated technology, providing a compact and powerful computer that can be easily integrated into any environment. This computer is designed to provide a fast and efficient way to manage your tasks, making it perfect for industrial, commercial, and residential use. With its advanced Rockchip RK3568B2 processor and 4G of LPDDR4 memory, you can run multiple applications simultaneously without any lag or slowdown. The 13.3" capacitive touch screen and 10-point touch functionality make it easy to navigate and interact with your computer, making it a great solution for a wide range of applications.
Key Features
- 13.3" capacitive touch screen with 10-point touch functionality
- Rockchip RK3568B2 processor, providing fast and efficient performance
- 4G of LPDDR4 memory, allowing for smooth multitasking
- 32G of eMMC storage, providing ample space for your files and applications
- Support for WiFi 6 and Bluetooth, making it easy to connect to the internet and other devices
- 2 x gigabit LAN ports, providing fast and reliable networking
- 1 x USB 3.0 port and 3 x USB 2.0 ports, making it easy to connect peripherals and accessories
- 1 x HDMI OUT port, allowing for easy connection to external displays
- Support for Android 11, Ubuntu 20.04, and Debian 10 operating systems
- Compact and fanless design, making it perfect for limited spaces and reliable operation
Specifications
| General |
|
| Chassis Material/Structure |
Aluminum alloy material, fanless cooling structure |
| Color |
Sliver |
| Dimension |
L326 x W201 x H42.5mm |
| Weight（Net weight） |
1.9KG |
| Installation |
VESA(75 x 75)/wall mounting |
| LCD Screen |
|
| Type |
13.3 inch LCD, Wide screen, 16:9 |
| Resolution |
1920 x 1080 |
| Brightness |
300 cd/m2 |
| Touch Screen |
|
| Type |
Capacitive screen, 10-point touch |
| Light transmittance |
Over 86% |
| Motherboard |
|
| CPU |
RK3568B2 Dual Cortex-A55 Up to 2.0G CPU |
| Memory |
LPDDR4 4G(2G/8G/16G optional) |
| Storage |
eMMC 5.1 32G(16G/64G/128G optional) |
| LAN WiFi |
WiFi 6+BT |
| IO Ports |
|
| POWER |
1 x Power button,1 x flash key |
| LED |
1 x power light，1 x hard disk indicator |
| Display port |
1 x HDMI OUT(Optional to add 1 x HDMI IN) |
| LAN |
2 x gigabit LAN, support POE |
| USB |
1 x USB3.0，3 x USB2.0（the USB2.0 above on USB3.0 is OTG） |
| COM |
4 x RS232/485（placed on 2 x 12P phoenix terminal） |
| DI/DO |
4 x DI,4 x DO（placed on 2 x 12P phoenix terminal） |
| Audio |
1 x Line out & MIC two in one port |
| TF/SIM |
1 x TF slot /1 x SIM slot（inner side） |
| Speaker |
2 group 4 Ω 2W speaker |
| Power |
1 x DC (5.5 x 2.5) or 1 x 2P(P=5.08mm)phoenix terminal, support 9V~36V power in |
| Storage |
|
| MSATA |
1 x MSATA |
| Expansion |
|
| 5G |
1 x M.2, support Key-B,3042/3052,5G module |
| OS |
|
| Android/Linux |
Android 11, Ubuntu20.04, Debian10 |
| Power |
|
| Power |
DC 9V~36V |
| Power output |
AC TO DC 60W |
| Environment |
|
| Working Temp. |
-10℃～50℃ |
| Storage Temp. |
-20℃～70℃ |
| Relative humidity |
5%-95% relative humidity, without condensation |
| Vibration |
0.5g |
