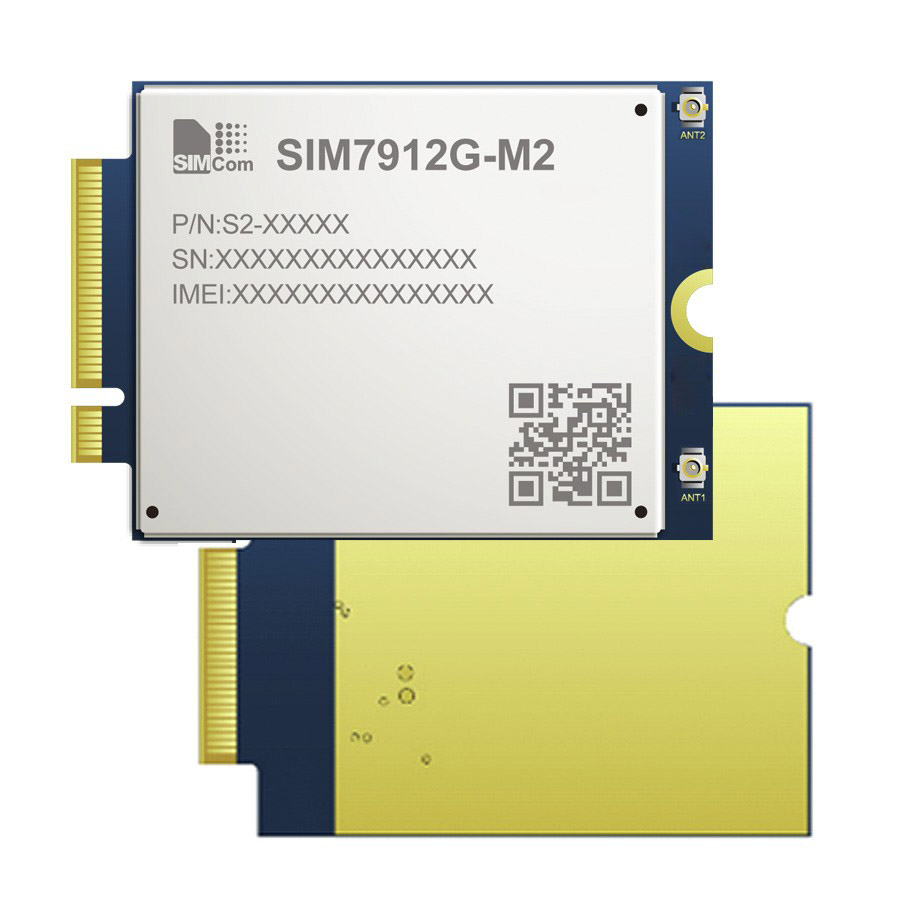

The growing demand for reliable, high-speed connectivity in remote or mobile IoT devices can stall projects if the cellular module is slow, hard to integrate, or lacks precise positioning. The SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module delivers ultra-fast LTE Cat-12 speeds, global band support and built-in GNSS, all in a compact M.2 form factor that fits easily into your design, letting you launch faster, smarter solutions.
SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module solves connectivity bottlenecks
You often struggle with modules that require custom drivers, limited network coverage or bulky footprints, which can increase development time and cost. This module removes those hurdles by offering worldwide LTE and HSPA+ compatibility, a ready-to-use M.2 interface and integrated high-accuracy GNSS. The result is a single, plug-and-play component that accelerates time-to-market while ensuring reliable data transfer and precise location tracking.
Benefits
A quick look at what you gain:
- Downlink speeds up to 600 Mbps keep your data streams smooth and responsive.
- Uplink capacity of 150 Mbps supports real-time uploads and cloud sync.
- Multi-constellation GNSS provides accurate positioning for tracking and navigation.
- Broad LTE and UMTS band coverage guarantees connectivity in most regions.
- Familiar AT command set lets you reuse existing code from SIM7500, SIM7600 and SIM7906 modules.
Key Features of SIMCOM SIM7912G-M2 3042 4G LTE/GNSS CAT-12 600Mbps Global Version WWAN Module

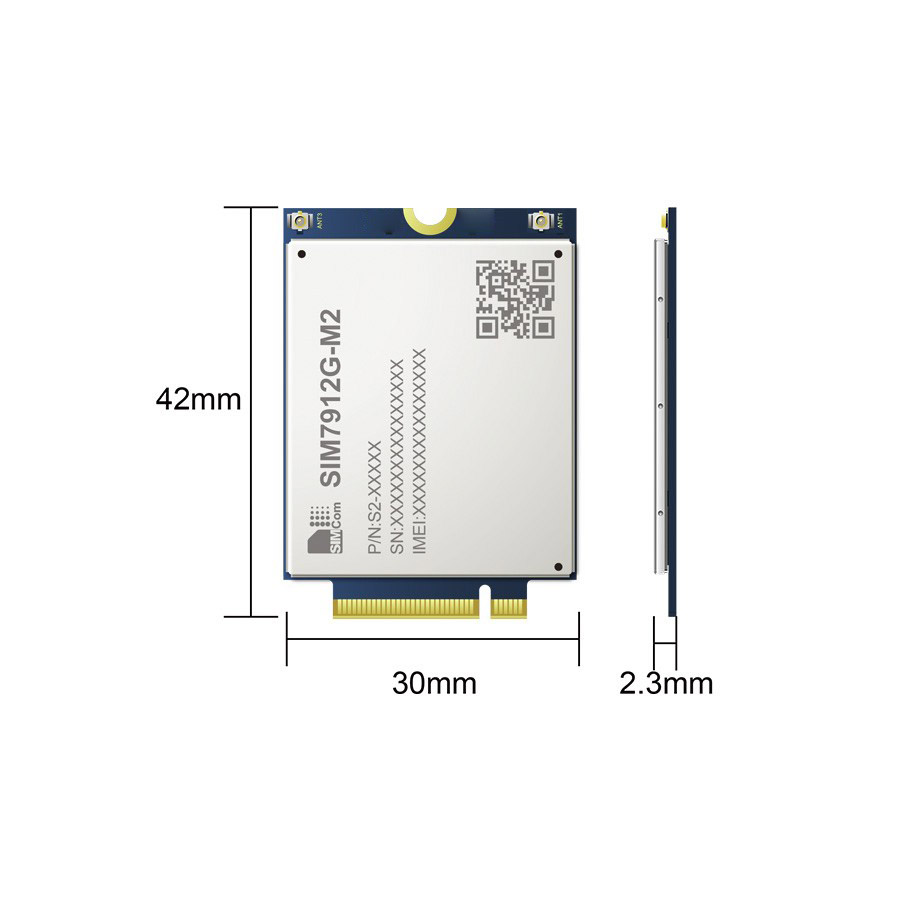

- Form Factor: M.2 3042 - compact size for easy board integration.
- Primary Technology: LTE - cat 12 - supports the latest high-speed cellular standards.
- Max DL Speed: 600Mbps - delivers rapid download performance.
- Max UL Speed: 150Mbps - enables swift data uploads.
- GNSS: Yes - includes multi-satellite positioning for accurate location.
- Chipset: Qualcomm SDX12 - reliable processing power and network efficiency.
- LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B38, B39, B40, B41, B66 - broad global coverage.
- UMTS Bands: B1, B2, B3, B4, B5, B8, B19 - ensures 3G fallback where needed.
- Data Interface: USB 3.0 and USB 2.0 - fast and flexible host connections.
- MIMO: Yes - improves signal quality and throughput.
Specifications
| Model |
SIMCom SIM7912G |
| Region |
Global |
| Form Factor |
M.2 3042 |
| Primary Technology |
LTE - cat 12 |
| Max DL Speed |
600Mbps |
| Max UL Speed |
150Mbps |
| GNSS |
Yes |
| Chipset |
QualcommSDX12 |
| LTE Bands |
B1 (FDD 2100) |
| B2 (FDD 1900) |
| B3 (FDD 1800) |
| B4 (FDD 1700 / AWS) |
| B5 (FDD 850) |
| B7 (FDD 2600) |
| B8 (FDD 900) |
| B12 (FDD 700ac) |
| B13 (FDD 700c) |
| B17 (FDD 700bc) |
| B18 (FDD 800) |
| B19 (FDD 800) |
| B20 (FDD 800DD) |
| B25 (FDD 1900) |
| B26 (FDD 850) |
| B28 (FDD 700) |
| B29 (SDL 700) |
| B30 (FDD 2300) |
| B32 (SDL 1500) |
| B38 (TDD 2600) |
| B39 (TDD 1900) |
| B40 (TDD 2300) |
| B41 (TDD 2500) |
| B66 (FDD 1700 / AWS-3) |
| UMTS Bands |
B1 (2100) |
| B2 (1900) |
| B3 (1800) |
| B4 (AWS) |
| B5 (850) |
| B8 (900) |
| B19 (800) |
| Antenna Connectors |
IPEX MHF-4 |
| Data Interface |
USB 3.0 |
| USB 2.0 |
| MIMO (Multiple-Input Multiple-Output) |
Yes |
| Certification |
CE, RED, RoHS, REACH, RCM, Telec, Jate |
| Driver Support |
Windows, Linux & Android |
| Operating Temperature Range |
-30°C ~ 75°C |
