Fast, reliable connectivity is essential when your device must stream large files, run AI analytics, or stay online in remote locations. The SIMCOM SIM8260G-M2 5G Sub-6G Module up to 3.4Gbps Global Version WWAN Module delivers ultra-high-speed 5G and LTE performance in a compact M.2 form factor, letting you add world-class wireless capability without redesigning your hardware.

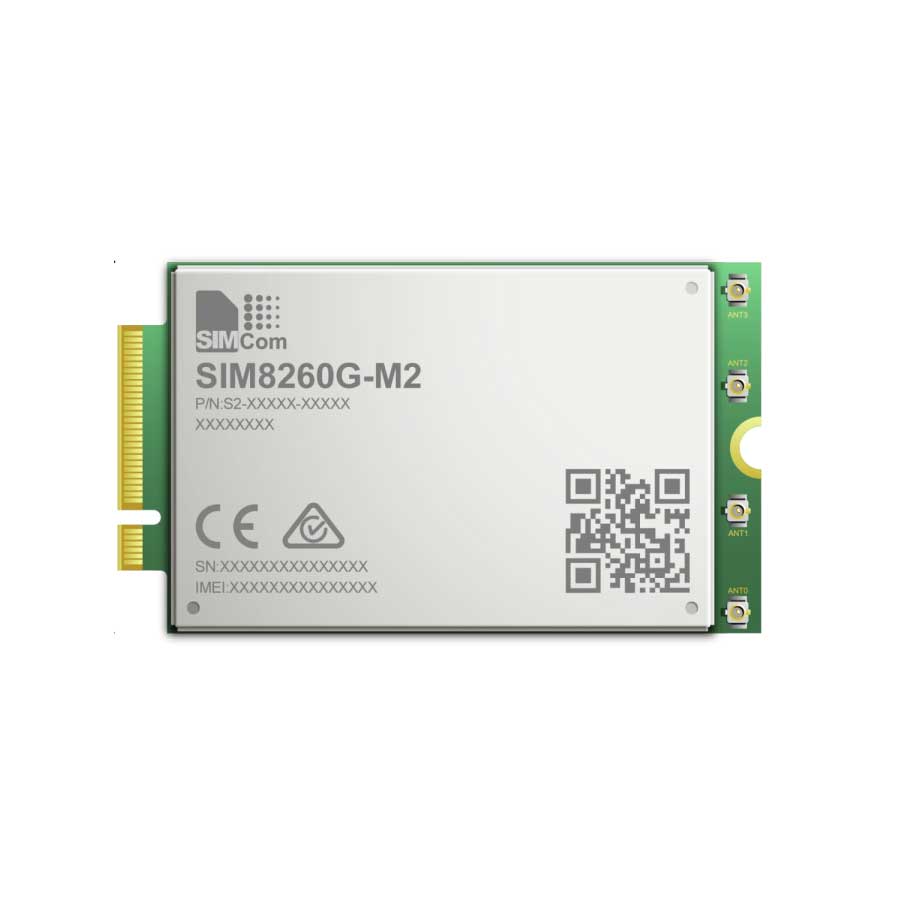

SIMCOM SIM8260G-M2 5G Sub-6G Module up to 3.4Gbps Global Version WWAN Module
The biggest challenge for developers is finding a module that supports the latest 5G bands while remaining easy to integrate and cost-effective. This module solves that problem by offering full global coverage, a wide range of frequency bands, and AT-command compatibility with the popular SIM8200 series. As a result you can launch products faster, reduce engineering effort, and meet the demanding data rates of modern applications.
Key Features of SIMCOM SIM8260G-M2 5G Sub-6G Module up to 3.4Gbps Global Version WWAN Module
- Model: SIMCom SIM8260G-M2 - identifies the exact device for ordering and support.
- Coverage: Global - works in virtually any country with 5G or LTE networks.

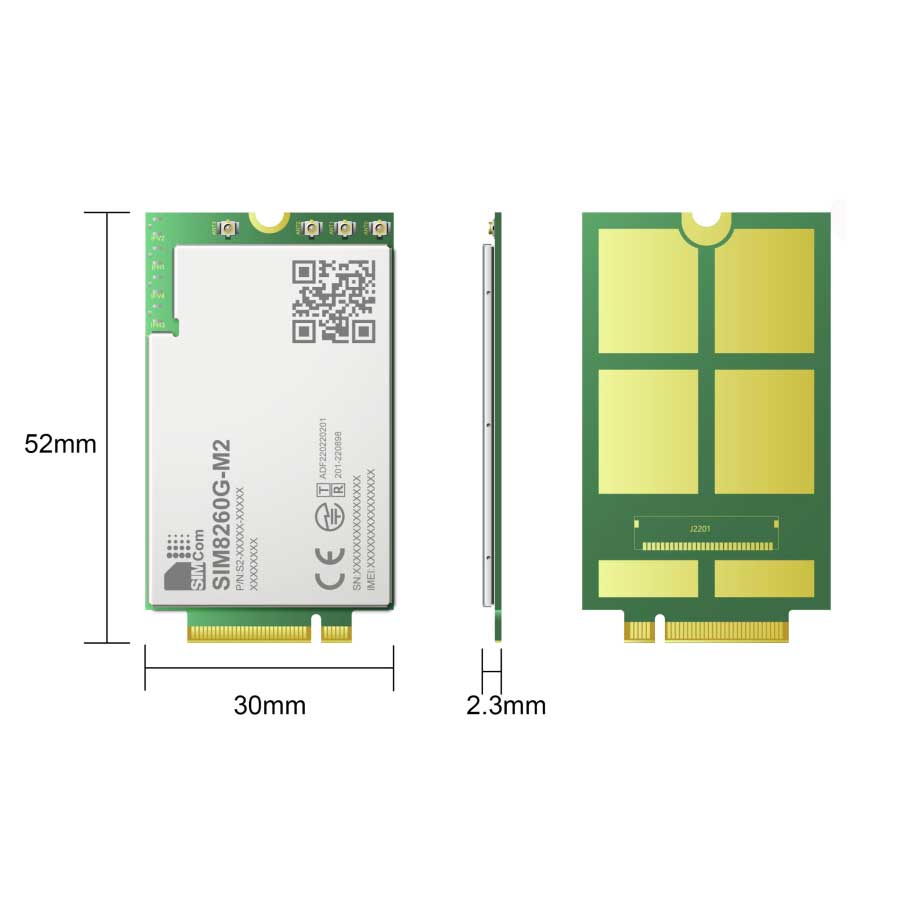

- Form Factor: M.2 3052 (52.0*30.0*2.3) - fits standard M.2 slots for easy board integration.
- Frequency Bands - 5G SA, 5G NSA, LTE-FDD, LTE-TDD, WCDMA - covers all major carriers and ensures reliable connectivity.
- GNSS: GPS/GLONASS/Beidou/Galileo/QZSS - provides accurate positioning for navigation and tracking.
- Temperature Range: Normal -30℃ ~ +70℃, Extended -40℃ ~ +85℃ - operates in harsh industrial environments.
- Supply Voltage: 3.135 ~ 4.4 V - matches typical board power supplies for stable performance.
- Data Transfer Rate - SA 2.5 Gbps DL/0.9 Gbps UL, NSA 3.47 Gbps DL/460 Mbps UL - delivers the speed required for bandwidth-intensive tasks.
- Interface Support - SIM Card 1.8V/2.95V, USB, PCM, I2C, Diversity Receiver - offers flexible connections for a variety of system designs.
Specifications
| Model |
SIMCom SIM8260G-M2 |
| Coverage |
Global |
| Form Factor |
M.2 3052 (52.0*30.0*2.3) |
| Frequency Bands |
5G SA |
n1/n2/n3/n5/n7/n8/n12/n13/n14/n18/n20/n25/
n26/n28/n29/n30/n38/n40/n41/n48/n66/n71/
n75/n76/n77/n78/n79 |
| 5G NSA |
n1/n2/n3/n5/n7/n8/n12/n14/n20/n25/n28/n30/
n38/n40/n41/n48/n66/n71/n75/n77/n78/n79 |
| LTE-FDD |
B1/B2/B3/B4/B5/B7/B8/B12/B13/B14/B17/B18/
B19/B20/B25/B26/B28/B29/B30/B32/B66/B71 |
| LTE-TDD |
B34/B38/B39/B40/B41/B42/B43/B46/B48 |
| WCDMA |
B1/B2/B4/B5/B8/B19 |
| GNSS |
GPS/GLONASS/Beidou/Galileo/QZSS |
| Temperature |
Normal |
-30℃ ~ +70℃ |
| Extended |
-40℃ ~ +85℃ |
| Supply Voltage(V) |
3.135 ~ 4.4 |
| Date Transfer Rate |
SA |
2.5Gbps(DL)/0.9Gbps(UL) |
| NSA |
3.47Gbps(DL)/460Mbps(UL) |
| LTE |
1.6Gbps(DL)/200Mbps(UL) |
| HSPA+ |
42Mbps (DL)/5.76Mbps(UL) |
| Software Features |
Protocol |
TCP/IP/IPV4/IPV6/Multi-PDP/FTP/FTPS/HTTP/
HTTPS/MQTTS/DNS/SSL3.0 |
| TLS |
Support |
| File system |
Support |
| FOTA |
Support |
| Android RIL |
Android 6/7/8/9 |
| USB Driver |
Windows Win7/Win8/Win10/Linux/Android |
| MBIM |
Win8/Win10 |
| NDIS |
Linux/Win7/Win8/Win10 |
| Interface |
SIM Card |
1.8V/2.95V |
| USB |
Support |
| PCM |
Support |
| I2C |
Support |
| Diversity Receiver |
Support |
| Certifications |
Regulatory |
CE(RED)/UKCA/FCC/IC/RCM/RoHS/REACH/TELEC/JATE |
