Industrial Embedded Panel PC with 21.5" Capacitive Touchscreen & RK3588 CPU offers a rugged, high-performance computing platform for factories, kiosks and automation lines where ordinary PCs simply can’t keep up.

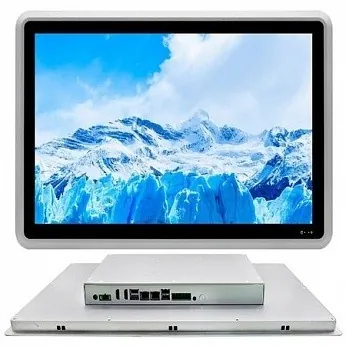

Industrial Embedded Panel PC with 21.5" Capacitive Touchscreen & RK3588 CPU
Many industrial operators struggle with computers that overheat, crash or lack the I/O needed for specialised equipment. Downtime costs money and erodes confidence in your processes. This panel PC solves those issues with a fan-less aluminium chassis, an eight-core RK3588 processor and a suite of industrial-grade ports, delivering reliable performance in harsh environments.
Benefits
Designed to make your work smoother and more reliable:
- Robust aluminium, fanless design keeps the unit cool and maintenance-free.
- Eight-core RK3588 CPU handles demanding applications without lag.
- 10-point capacitive touchscreen provides fast, intuitive control.
- Dual Gigabit Ethernet with POE simplifies network wiring and power delivery.
- Wide OS support (Linux, Android, Ubuntu) lets you run the software you need.
Usages of Industrial Embedded Panel PC with 21.5" Capacitive Touchscreen & RK3588 CPU
Ideal for production line HMI panels, machine vision stations, warehouse management terminals and any embedded system that requires a durable, high-resolution touch display and extensive connectivity.
Key Features of Industrial Embedded Panel PC with 21.5" Capacitive Touchscreen & RK3588 CPU
- Screen size: 21.5" Capacitive Touchscreen. A large, bright display makes data easy to read at a glance.
- Processor: RK3588 CPU (quad-core Cortex-A76 @2.4 GHz + quad-core Cortex-A55 @1.7 GHz). Delivers powerful multitasking for complex industrial tasks.
- Memory: LPDDR4 8 GB (optional 4 GB/16 GB/32 GB). Provides fast, responsive operation for heavy applications.
- Storage: eMMC5.1 64 GB (optional 16 GB/32 GB/128 GB). Offers reliable onboard storage with room for OS and data.
- Ethernet: 2 × Gigabit Ethernet, POE supported. Ensures high-speed networking and simplifies cabling.
- USB ports: 1 × USB 3.0, 3 × USB 2.0. Connects peripherals, scanners and external drives with ease.
- Serial ports: 4 × RS232/485 (on 2 × 12-pin Phoenix). Enables communication with PLCs, sensors and other industrial devices.
- Wireless: Onboard WiFi 6 / BT 5.0 (802.11a/b/g/n/ac/ax). Adds flexible, high-speed wireless connectivity.
- Power input: 9 V ~ 36 V external supply (DC air interface or 2-pin Phoenix). Supports a wide range of industrial power sources.
- Expansion: 1 × MSATA, 1 × M.2/5G (Key-B, 3042/3052) supporting 5G modules. Allows future storage or cellular upgrades.
Specifications
| General |
|
| Chassis Material/Structure |
Aluminum case, fanless design |
| Color |
Silver |
| Dimension |
L537 x W335 x H65mm |
| Net Weight |
7 KG |
| Installation |
VESA mount / embedded |
| LCD |
|
| Screen Type |
21.5 inch LCD，16:9，Widescreen |
| Resolution |
1920 x 1080 |
| Luminance |
300 cd/m2 |
| Touch Screen Type |
Capacitive，10 point touch |
| Light Transmission |
86% above |
| Motherboard |
|
| CPU |
Onboard ARM Chipest RK3588 quad core Cortex-A76/2.4G+ quad core Cortex-A55/1.7G in total 8 core processor |
| Memory |
Onboard LPDDR4 8GB(4GB/16GB/32GB optional ） |
| Storage |
Onboard eMMC5.1 64GB（16GB/32GB/128GB optional） |
| IO Port |
|
| POWER |
1 x Power key, 1 x burn key |
| LED |
1 x Power LED, 1 x HDD LED |
| Display |
1 x HDMI IN，1 x HDMI OUT |
| LAN |
2 x Gigabit Ethernet,，support POE |
| USB |
1 x USB3.0, 3 x USB2. |
| COM |
4 x RS232/485（On 2 x 12P PHOENIX） |
| DIO |
4 in 4 out DIO（On 2 x 12P PHOENIX） |
| Audio |
1 x Audio，Line out with MIC |
| WiFi |
Onboard WiFi6/BT5.0，Support 802.11a/b/g/n/ac/ax |
| TF/SIM |
1 x TF, 1 x SIM |
| Loudspeaker |
2 group 4Ω2W loudspeaker |
| Power |
1 x DC air interface or 1 x 2P P=5.08mm Phoenix terminal, support 9V~36V input |
| Expansion |
|
| MSATA |
1 x MSATA |
| M.2 |
1 x M.2/5G，Key-B，3042/3052，Support 5G module |
| OS |
Support Linux, Android 7.1, Android 10, Ubuntu18.04 |
| Power Supply |
|
| Power Type |
External power supply |
| Voltage Input |
9V~36V |
| Rate Consumption |
AC TO DC 60W above |
| Environment |
|
| Operating Temp. |
-10℃～50℃ |
| Storage Temp. |
-20℃～70℃ |
| Relative Humidity |
5%-95% relative humidity, non-condensing |
| Vibration |
0.5g rms/5-500HZ/random/operating |
