If you are looking for a reliable and powerful computer that can handle your industrial needs, you are in the right place. The Intel Celeron J6412 2.0GHz Industrial Faneless PC with 6COM 2 x DDR4 Memory Slot is a high-performance computer designed to meet the demands of industrial applications. Many people struggle with finding a computer that can handle their industrial needs, but with this product, you can say goodbye to those struggles. The Intel Celeron J6412 2.0GHz Industrial Faneless PC is the perfect solution for anyone looking for a reliable and powerful computer. With its advanced features and capabilities, it is the perfect choice for industrial applications.
Intel Celeron J6412 2.0GHz Industrial Faneless PC with 6COM 2 x DDR4 Memory Slot
This product solves the problem of finding a reliable and powerful computer that can handle industrial needs. The problem of finding a computer that can handle industrial applications is a common one, and it can be frustrating and time-consuming. However, with the Intel Celeron J6412 2.0GHz Industrial Faneless PC, you can say goodbye to those frustrations. This product provides a clear solution to the problem of finding a reliable and powerful computer. With its advanced features and capabilities, it is the perfect choice for industrial applications. The Intel Celeron J6412 2.0GHz Industrial Faneless PC is designed to meet the demands of industrial applications, and it is the perfect solution for anyone looking for a reliable and powerful computer.
Key Features
- Intel Celeron J6412 2.0GHz processor
- Fanless cooling system for reliable and durable operation
- 2 x DDR4 memory slots for flexible expansion options
- 1 x M.2 slot for additional storage or expansion options
- 6 x COM ports for industrial communication and control
- 4 x LAN ports for high-speed networking and communication
- 1 x HDMI port and 1 x DP port for high-definition video output
- 1 x VGA port for legacy video output
- Support for Windows 10/11 and Linux operating systems
- Watchdog timer for reliable and safe operation
- Power input range of 9-36V DC for flexible power options
Specifications
| Chassis Material/Structure |
|
| Chassis Material/Structure |
Aluminum alloy and sheet metal construction, fanless cooling |
| Color |
Black |
| Dimension (L × W × H) |
173 × 148 × 72 mm |
| Net Weight |
/ |
| Installation |
Desktop/Wall mount (70 × 70) |
| Motherboard |
|
| CPU |
Integrated Intel® Celeron J6412 2.0 GHz, 4-core, 4-thread processor, TDP 10 W |
| Chipset |
SOC |
| Memory |
2x DDR4 SODIMM 3200 MHz memory slot, support up to 32 GB |

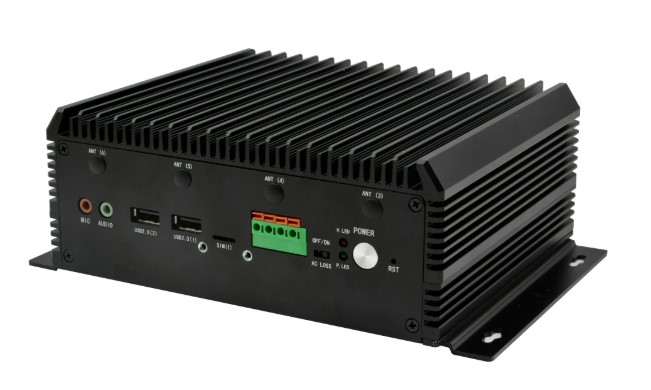

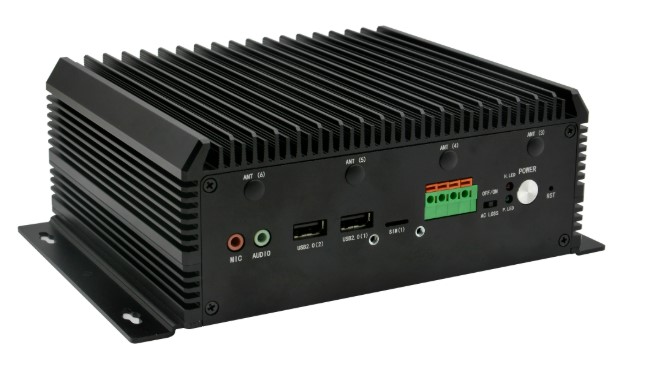

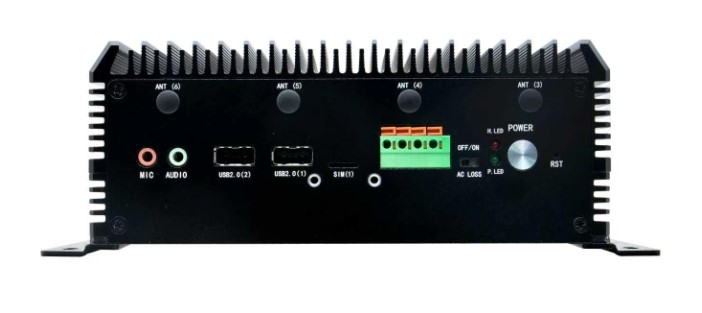

| Front Panel |
|
| Connector POWER |
1x Power button (PWR), 1x Reset switch (RST), 1x ACLOSS (Power-on Boot DIP Switch) |
| LED |
1x Power LED, 1x HDD LED |
| Remote Switch |
1x PWR_ON Signal, 1x PWR_LED Signal (in 1x 4P Phoenix terminal) |
| Audio |
1x Line out, 1x MIC |
| USB |
2x USB2.0 |
| SIM |
1x SIM card slot |

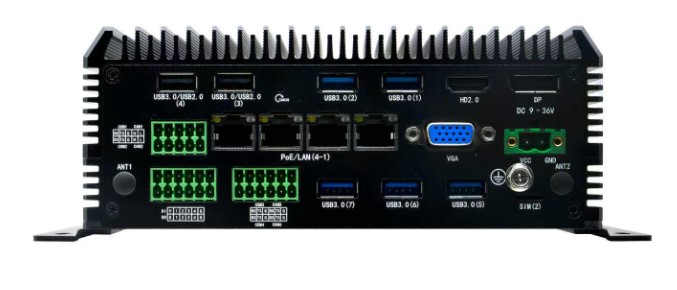

| Rear Panel |
|
| Display Port |
1x HDMI2.0, 1x DP, 1x VGA, support triple display |
| LAN |
4x Intel I210AT 1GbE network connector, support POE (48 V/15 W) |
| USB |
5x USB3.0, 2x USB2.0 |
| COM |
6x RS232/485 COM, in 2x 5-pin and 2x 6-pin Phoenix terminal, 2x 5-pin Phoenix terminal also support 2x CAN |
| GPIO |
Support 4-in 4-out GPIO, in 2x 6-pin Phoenix terminal |
| SIM |
1x SIM card slot |
| Power |
1x 2P (P = 5.08 mm) DC 9~36 V power input |
| Storage |
|
| SATA |
1x 2.5 inch hard drive bay, can install SSD directly |
| SSD |
1x M.2 slot, support M.2 Key M 2280 NVME PCIE x2 SSD |
| Expansion |
|
| MiniPCIE |
1x MINIPCIE slot, support WIFI/4G/CAN module |
| M.2 |
1x M.2 slot, support M.2 Key B 3042/3052 4G/5G module |
| System |
|
| Windows |
Windows 10/11 |
| Linux |
Ubuntu |
| Watch Dog |
Supports hardware reset function (256 levels, 0~255 seconds) |
| Power |
|
| Power Type |
DC 19~36 V |
| Power Output |
AC TO DC |
| Environment |
|
| Operating Temp |
-10 ℃ to 50 ℃ |
| Storage Temp |
-20 ℃ to 70 ℃ |
| Relative Humidity |
5%–95% relative humidity, non-condensing |
| Vibration |
0.5g rms/5–500 Hz/random |
