If you are looking for a reliable and efficient computer system for your industrial needs, you may be facing a common problem: finding a device that can handle tough tasks while being easy to use. This problem matters to you because it can affect your productivity and overall business performance. The Intel Celeron J6412/2.00GHz 12.1" Capacitive/10-point touch Industrial Panel PC gives a clear solution to this problem by providing a powerful and user-friendly system that can meet your industrial computing needs. With its advanced Intel processor and high-quality touch screen, this device is designed to make your work easier and more efficient.

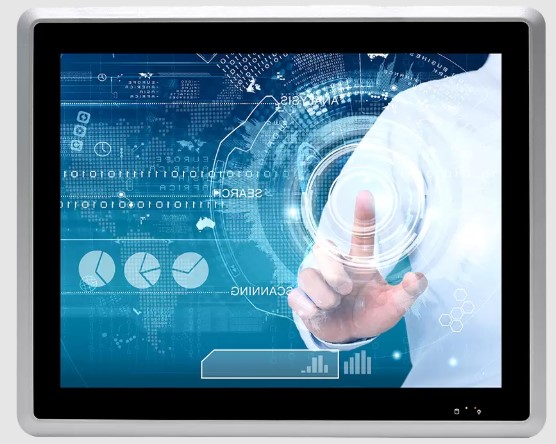

Intel Celeron J6412/2.00GHz 12.1" Capacitive/10-point touch Industrial Panel PC with Intel
Imagine having a computer system that can handle all your industrial tasks with ease and accuracy. The Intel Celeron J6412/2.00GHz 12.1" Capacitive/10-point touch Industrial Panel PC is a powerful device that is designed to meet your needs. It features a robust Intel processor and a high-quality touch screen that makes it easy to use and navigate. This device is perfect for businesses and organizations that need a reliable and efficient computer system for their industrial operations. With its advanced features and user-friendly interface, this device can help you streamline your processes and improve your overall productivity.
Key Features
- Intel Celeron J6412/2.00GHz quad-core processor
- 12.1" capacitive touch screen with 10-point touch functionality
- 2 x DDR4 SODIMM 2400MHz RAM slots, up to 32GB
- 1 x 2.5" hard disk port and 1 x M.2 SSD port
- 4 x USB3.0 and 2 x USB2.0 ports
- 1 x HDMI port and 2 x Intel I210 Gigabit Ethernet ports
- 6 x RS232 ports and 1 x Phoenix connector
- Support for Windows 10 and Ubuntu operating systems
- External power supply with 9V-36V voltage input
Specifications
| General |
|
| Chassis Material/Structure |
Aluminum case, fanless design |
| Color |
Silver |
| Dimension |
L368 x W292 x H62mm |
| Net Weight |
2.97KG |
| Installation |
VESA mount / embedded |
| LCD Screen |
|
| Type |
12.1”LCD |
| Resolution |
1024 x 768 |
| Luminance |
500 cd/m2 |
| Touch Screen Type |
Capacitive，10 point touch |
| Light Transmission |
>86% |
| Mainboard |
|
| CPU |
Onboard Intel®Celeron J6412/2.00GHz quad core 4-thread processor, TDP 10W |
| Graphics |
Intel® UHD Graphics for 10th Gen Intel® Processors |
| Memory |
2 x DDR4 SODIMM 2400MHz RAM slot, up to 32GB |
| IO Port |
|
| POWER |
1 x Power button，1 x One-key restore，1 x AC LOSS（auto power ON/OFF）1 x CMOS button |
| LED |
1 x Power LED, 1 x HDD LED |
| Display |
1 x HDMI |
| LAN |
2 x Intel I210 Gigabit Ethernet, support Wake On LAN、PXE |
| USB |
4 x USB3.0，2 x USB2.0 |
| COM |
6 x RS232，COM1~2 DB9 RS232，COM2 RS485/422，COM3-6 RS232 on 2 x 15pin Phoenix connector，
COM3 support RS485，COM1-2 support pin9 charged function
|
| Phoenix Connector |
2 x 15Pin （4-in 4-out GPIO，power signal, COM3~COM6，5V VCC and GND) |
| DIP switch |
10-digit dip switch for COM2~3 RS232/RS485 select，COM2 RS422 via COM2_SW1 jumper |
| Audio |
1 x Line out，1 x MIC |
| Power |
DC9~36V power input, 1 x DC aviation port, 1 x 2Pin Phoenix connector |
| Storage |
|
| SATA |
1 x 2.5” hard disk port |
| M.2 |
1 x M.2 SSD port，support Key-M，2280，NVME PCIEx4 SSD |
| MSATA |
1 x MSATA SSD port |
| Expansion |
|
| M.2/WiFi |
1 x M.2/WiFi，support Key-E，2230，WiFi module |
| M.2/5G |
1 x M.2/5G，support Key-B，2242/52，5G module |
| OS Support |
|
| Windows |
Windows 10 |
| Linux |
Ubuntu |
| Watch Dog |
Support hardware reset function (L256, 0~255 seconds) |
| Power Supply |
|
| Power Type |
External power supply |
| Voltage Input |
9V~36V |
| Rate Consumption |
60W~180W |
| Environment |
|
| Operating Temp. |
-10℃～50℃ |
| Storage Temp. |
-20℃～70℃ |
| Relative Humidity |
5%-95% relative humidity, non-condensing |
| Vibration |
0.5g rms/5-500HZ/random/operating |
