Many businesses struggle with devices that buckle under constant use, causing costly downtime and lost productivity. The Intel Celeron J6412/2.0GHz Embedded Panel PC with 15" Capacitive/10 Touch Screen delivers a sturdy, high-performance solution built for industrial and commercial environments, keeping your operations running smoothly.
Intel Celeron J6412/2.0GHz Embedded Panel PC with 15" Capacitive/10 Touch Screen solves heavy-use reliability issues
When equipment fails during critical tasks, you lose time and revenue. This panel PC tackles that problem with a fanless aluminium chassis, a capable Celeron processor and a responsive 15-inch touch display, ensuring continuous operation even in demanding settings. Its robust networking, flexible power input and rugged design give you the confidence that the hardware will keep up with your workload.
Benefits
Designed for real-world use, this device offers:
- Reliable performance that reduces unexpected shutdowns.
- Easy 10-point touch interaction for faster data entry.
- Flexible storage options to match your data needs.
- Built-in POE support to simplify cabling and power management.
- Wide voltage range allowing installation in varied locations.
Usages of Intel Celeron J6412/2.0GHz Embedded Panel PC with 15" Capacitive/10 Touch Screen
Ideal for industrial control panels, point-of-sale terminals, digital signage, kiosks and any application that demands a durable, touch-enabled computer, this panel PC fits seamlessly into tight spaces while delivering the processing power required for smooth operation.
Key Features of Intel Celeron J6412/2.0GHz Embedded Panel PC with 15" Capacitive/10 Touch Screen
- CPU: Intel Celeron J6412/2.0GHz processor - provides efficient computing for multitasking.
- Display: 15" capacitive touch screen, 10-point touch - enables intuitive, multi-finger interaction.
- Memory: 2 x SODDR4 - offers fast, reliable RAM capacity for smooth performance.
- Storage: 1 x 2.5 inch HDD and 1 x M.2/SSD - flexible options for bulk or high-speed storage.
- Ethernet: 5 x Intel I210AT Gigabit Ethernet, 4 x LAN with POE/15W - ensures robust networking and power-over-ethernet capability.
- USB: 2 x USB 3.0 and 2 x USB 2.0 ports - supports a variety of peripherals and accessories.
- Video Output: 1 x HDMI 1.4 display port - allows connection to external monitors up to 4096 × 2304.
- Audio: 1 x AUDIO, Line out & MIC all-in-one - simplifies audio input and output.
- OS Compatibility: Supports Windows and Linux - gives you freedom to choose your preferred platform.
- Enclosure: Rugged aluminium case with fanless cooling - delivers durability and silent operation.
Specifications
| General |
|
| CPU |
Intel Celeron J6412/2.00G |
| Motherboard |
P642 |
| Memory |
2 x SODDR4 |
| I/O Board |
P1082-P4/P1071-LED |
| Case Material/Structure |
Aluminum case, fanless cooling |
| Color |
Brightness silver |
| Dimension(L x W x H) |
L368 x W292 x H62mm |
| Net weight |
3.8KG |
| Installation |
Support VESA/Embedded panel mounting |
| LCD Display |
|
| Type |
15 inch LCD，4:3，panel |
| Max. Resolution |
1024 x 768 |
| Brightness |
350 cd/m2 |
| Touch screen |
Capacities touch screen, 10-point touch (adjustable resistance screen) |
| Light Transmission |
Up to 86% |

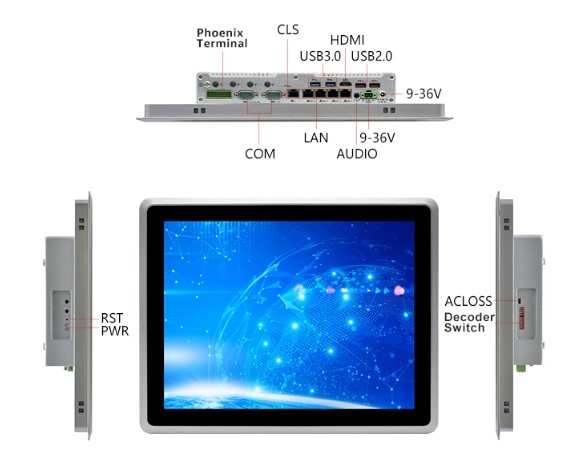

| IO Port |
|
| POWER |
1 x Power button, 1 x one key restore (and reset switch optional),
1 x ACLOSS (power on DIP switch), 1 x CMOS reset switch
|
| LED |
1 x power LED，1 x HDD LED |
| Display |
1 x HDMI1.4 (4096 x 2304@24Hz) |
| LAN |
5 x Intel I210ATGigabit Ethernet，4 x lan support POE/15W |
| USB |
2 x USB3.0，2 x USB2.0 |
| COM |
4 x RS232，COM1~2 RS232 DB9，COM2 support RS485/422，COM3~4 RS232 in
2 x 12pin PHOENIX，COM3 support RS485，COM1-2 support the 9th pin with charge functional
|
| PHOENIX |
2 x 12Pin(4 in&out GPIO,switch signal, COM3~COM4，5V VCC and GND) |
| DIP switch |
10 Bit dip switch，COM2~3 RS232/485 Switch，COM2 RS422 via COM2_SW1 jump setting |
| Audio |
1 x AUDIO，Line out & MIC All in one |
| Power |
1 x DC(5.5 x 2.5) Air interface, 1 x 2P P=5.08mm PHOENIX，Support 9V~36V wide voltage input |
| Storage |
|
| SATA |
1 x 2.5 inch HDD |
| M.2 |
1 x M.2/SSD，support Key-M，2280，NVME PCIEX4 SSD |
| MSATA |
1 x MSATA |
| Expansion |
|
| M.2/WiFi |
1 x M.2/WiFi，Support Key-E，2230，WiFi module |
| M.2/5G |
1 x M.2/5G，Support Key-B，2242/52，5G module |
| Power Supply |
|
| Power Type |
External power adaptor |
| Voltage Input |
9V~36V |
| Power Output |
Above AC TO DC 60W（Base on device） |
| Environment |
|
| Working Temp. |
-10℃～50℃ |
| Storage Temp. |
-20℃～70℃ |
| Relative Humidity |
5%-95% relative humidity, non-condensing |
| Vibration |
0.5g rms/5-500HZ/random/operating |
