Industrial environments demand rock-solid performance, yet many legacy PCs stall under heavy data loads, costing time and money. The Intel Ultra 5 125H/1.20GHz Turbo 4.5GHz Fanless Industrial Box PC with Dual LAN delivers the speed, reliability and ruggedness you need to keep production moving.
Intel Ultra 5 125H/1.20GHz Turbo 4.5GHz Fanless Industrial Box PC with Dual LAN
This box PC eliminates the bottlenecks that slow down factory floor computers. Slow processors and overheating units cause downtime, which directly hits your bottom line. By combining a high-core-count Intel Ultra 5 CPU with fanless cooling and dual Ethernet ports, the system stays cool, stays connected and stays fast, ensuring uninterrupted operation in demanding settings.
Usages of Intel Ultra 5 125H/1.20GHz Turbo 4.5GHz Fanless Industrial Box PC with Dual LAN
Ideal for machine control, real-time data acquisition, edge computing, digital signage and remote monitoring, this compact unit fits on a DIN rail, wall mount or desktop, adapting to any industrial layout while handling multiple simultaneous tasks.
Benefits of Intel Ultra 5 125H/1.20GHz Turbo 4.5GHz Fanless Industrial Box PC with Dual LAN
You gain lightning-quick processing thanks to a 14-core, 18-thread CPU that tackles complex calculations without lag. The fanless aluminium chassis survives dust, vibration and extreme temperatures, reducing maintenance. Dual LAN ports provide redundant networking for fail-safe connectivity. DDR5 memory up to 64 GB ensures smooth multitasking, while versatile I/O options let you connect displays, serial devices and storage without extra adapters. Low power consumption (28 W TDP) cuts energy costs.
Key Features of Intel Ultra 5 125H/1.20GHz Turbo 4.5GHz Fanless Industrial Box PC with Dual LAN
- Processor: Intel Ultra 5 125H/1.20GHz, Turbo 4.5GHz, 14-core 18-thread, TDP 28W
- Memory: 2 × SODDR5 5600MHz, supports up to 64 GB
- Cooling: Fanless aluminium alloy + sheet metal design
- Networking: 2 × Intel I210AT Gigabit LAN ports
- Serial: 6 × RS232/485 DB9 ports (COM1-2 can support CAN)
- Display: 2 × HDMI 2.0, 1 × DP 1.4, 1 × VGA; quad-display support up to 4096 × 2304 @ 60 Hz
- USB: 4 × USB 3.0, 2 × USB 2.0, plus audio line-out and mic
- Storage: 1 × 2.5-inch HDD bay, 1 × MSATA, 1 × M.2 NVMe SSD (Key-M, 2280)
- Power: DC 9-36 V wide-range input, external 60 W+ adapter, 2.2 kg weight, 205 mm × 192 mm × 68.4 mm size
- Environment: Operating -10 °C to 50 °C, storage -20 °C to 70 °C, humidity 5 %-95 %, vibration 0.5 g rms 5-500 Hz.
Specifications
| Chassis |
|
| Chassis Material/structure |
Aluminium alloy + sheet metal, fanless cooling |
| Colour |
Black |
| Size (LWH) |
205mm x 192mm x 68.4mm |
| Weight (bare net) |
2.2KG |
| Installation |
Desktop/Wall Mount/DIN Rail(35mm) |
| Motherboard / CPU / Memory |
|
| Motherboard CPU |
Intel®Ultra 5 125H/1.20GHz, Turbo 4.5GHz, 14-core 18-thread processor, TDP 28W |
| Display |
Intel® Arc™ graphics |
| Memory |
2 x SODDR5 5600MHz, supports up to 64GB |

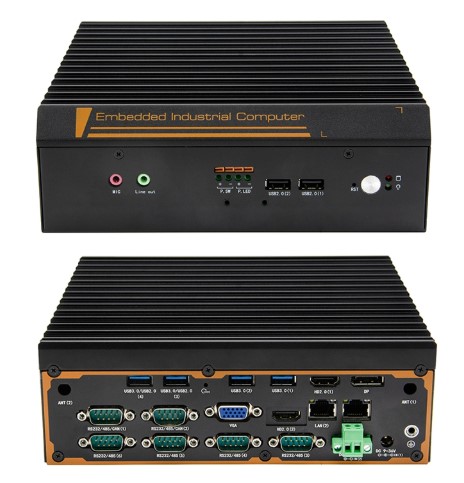

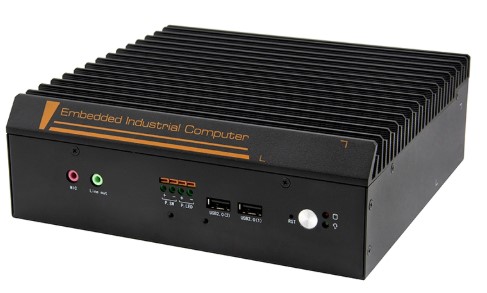

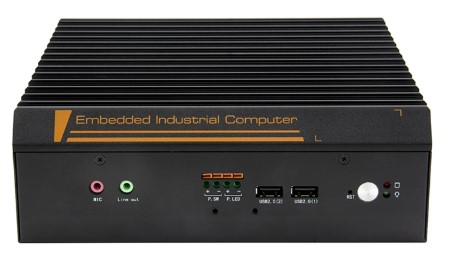

| Front Panel |
|
| Interface Switch |
1 x Boot Button, 1 x Reboot Button |
| LED |
1 x Power Indicator, 1 x Hard Drive Indicator |
| USB |
2 x USB2.0 |
| Audio |
1 x Line out, 1 x Mic |
| Phoenix Terminal |
1x 4P (1x Boot signal/1 x Power indicator signal) |

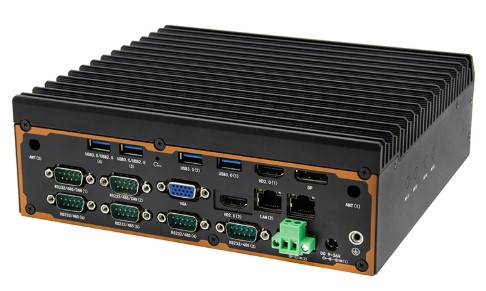

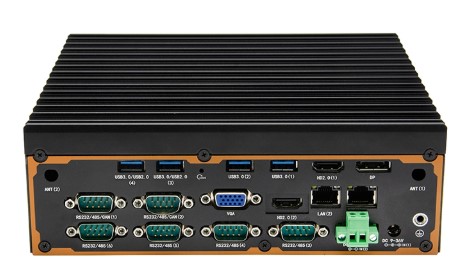

| Rear Panel |
|
| Interface Switch |
1 x CMOS restore key |
| Display Interface |
2 x HDMI2.0 (4096 x 2304@60Hz), 1 x DP1.4(4096 x 2304@60Hz), 1 x VGA,
support for quad display
|
| COM |
6 x RS232/485 DB9 serial port; COM1~2 can support CAN (need to load CAN module) |
| LAN |
2 x Intel I210AT Gigabit power port |
| USB |
4 x USB3.0 |

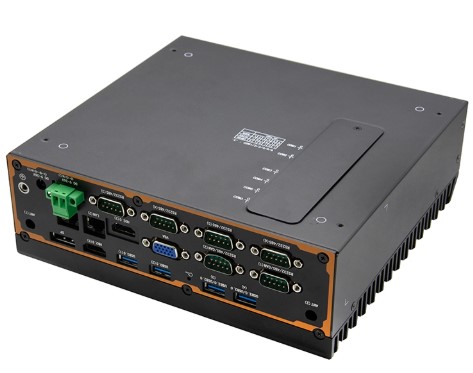

| DIP Switches |
6 sets of 6-position dip switches, RS232/485 switching use (dip switches are located at the bottom of the chassis) |
| Power Interface |
1 x DC interface or 1 x 2P P=5.08mm Phoenix terminal, support DC 9~36V wide voltage power input |
| Storage |
|
| SATA |
1 x 2.5-inch hard drive bay |
| MSATA |
1 x MSATA |
| M.2 |
1 x M.2/SSD, support Key-M, 2280, NVME PCIE x4 SSD |
| Expansion |
|
| MINIPCIE |
1 x MINIPCIE, support WiFi or 4G |
| Power Supply |
|
| Type Power Supply Type |
External Power Adapter |
| Input Voltage |
Input DC 9-36V wide voltage |
| Power output |
AC TO DC 60W or above (depending on specific equipment) |
| Environment |
|
| Operating temperature |
-10℃～50℃ |
| Storage Temperature |
-20℃～70℃ |
| Relative Humidity |
5%-95% relative humidity, non-condensing |
| Operating Vibration |
0.5g rms/5-500HZ/random/operating |
