If you struggle with embedded PCs that stall under heavy workloads or lack the connectivity you need, you’re not alone. The Onboard RK3588 Total 8 core ARM Embedded PC with LPDDR4 8G/64G VR58-L2 I/O Board delivers the power, memory and I/O options required for demanding industrial and media applications, giving you a single, reliable platform to replace multiple devices.
Onboard RK3588 Total 8 core ARM Embedded PC with LPDDR4 8G/64G VR58-L2 I/O Board
This compact board solves the common problem of under-powered, feature-starved embedded computers. When a system cannot keep up, projects stall and costs rise. By integrating an eight-core RK3588 processor, 8 GB of LPDDR4 RAM and 64 GB of eMMC storage, the board provides the performance headroom you need, while its extensive I/O suite ensures you can connect everything from displays to industrial sensors without extra adapters.
Usages of Onboard RK3588 Total 8 core ARM Embedded PC with LPDDR4 8G/64G VR58-L2 I/O Board
The board fits perfectly in industrial automation controllers, edge-AI gateways, digital signage, and media-streaming appliances, offering VESA-mountable flexibility for both rack and wall installations.
Benefits of Onboard RK3588 Total 8 core ARM Embedded PC with LPDDR4 8G/64G VR58-L2 I/O Board
You gain high-speed processing for AI inference and multitasking, while the 8 GB RAM ensures smooth operation of complex workloads. On-board Wi-Fi and Bluetooth give you instant wireless connectivity, eliminating the need for external modules. Dual HDMI outputs let you drive two screens from a single unit, and the fanless aluminium case provides silent, durable operation in harsh environments. Compatibility with Android 12 and Ubuntu 22.04 means you can choose the software stack that best fits your project.
Key Features of Onboard RK3588 Total 8 core ARM Embedded PC with LPDDR4 8G/64G VR58-L2 I/O Board
- Processor: Total 8 core ARM processor with 4 core Cortex-A76 and 4 core Cortex-A55
- Memory: Onboard LPDDR4 8G (4G/16G/32G optional)
- Storage: Onboard eMMC5.1 64G (16G/32G/128G optional)
- Wireless: Onboard WiFi 2.4G/BT4.1 for wireless connectivity
- Expansion: 1x M.2 slot, support Key-M, 2280 NVM PCIEx4 SSD; 1x SIM slot for cellular connectivity
- Video: 2x HDMI ports for dual displays
- USB: 1x USB3.0 port for high-speed data transfer and 1x USB2.0 on front panel
- Networking: 2x Gigabit Ethernet ports for high-speed networking
- Serial: 2x RS232/RS485 ports for industrial communication
- Power: 1x DC 12 V power input, 1x power button, fanless aluminium case for silent, rugged operation.
Specifications
| Chassis Material/Structure |
|
| Chassis Material/Structure |
Aluminum case, fanless design |
| Color |
Black |
| Dimension |
195 × 128 × 46.5 mm |
| Weight |
2.0 kg |
| Installation |
VESA-mount / wall-mount |
| Motherboard |
|
| CPU |
Onboard RK3588, 4 core Cortex-A76 2.4 GHz and 4 core Cortex-A55 1.7 GHz, total 8 cores |
| Chipset |
RK3588 SOC |
| Memory |
Onboard LPDDR4 8G (4G/16G/32G optional) |
| Storage |
Onboard eMMC5.1 64G (16G/32G/128G optional) |
| WiFi |
Onboard WiFi 2.4G/BT4.1 |
| M.2 Storage |
1x M.2, support Key-M, 2280 NVM PCIEx4 SSD |

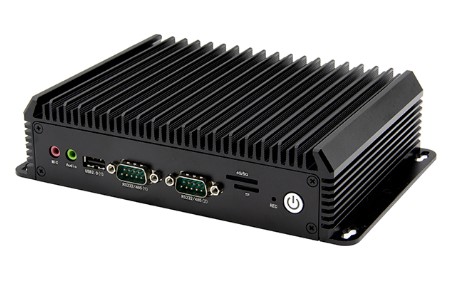

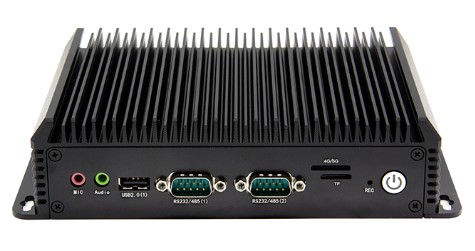

| Front Panel Port |
|
| POWER |
1x Power button, 1x REC button |
| USB |
1x USB2.0 |
| TF/SIM |
1x TF card slot (bottom), 1x SIM (upper) |
| Audio |
1x Line out, 1x MIC |

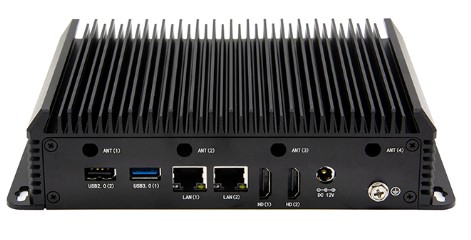

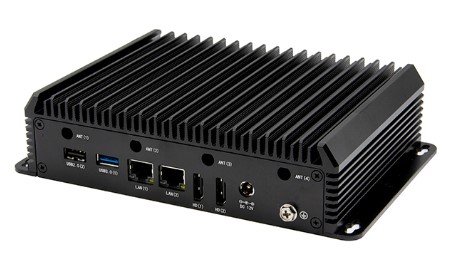

| Rear Panel Port |
|
| Display |
2x HDMI |
| USB |
1x USB3.0, 1x USB2.0 |
| LAN |
2x RTL8211F Gigabit Ethernet |
| COM |
2x RS232/RS485 |
| Power |
1x DC 12 V (5.5 × 2.5) |
| Expansion |
|
| M.2 |
1x M.2, support Key-B, 3042/3052, 5G module |
| Support OS |
|
| Operating System |
Android 12, Ubuntu 22.04 |
| Environment |
|
| Operating Temp. |
-20 ℃ to 60 ℃ |
| Storage Temp. |
-30 ℃ to 80 ℃ |
| Relative Humidity |
5%–95% relative humidity, non-condensing |
| Vibration |
0.5g rms/5–500 Hz/random/operating |
