Tired of slow, insecure networks that keep your business from running smoothly? The Rockchip RK3568B2 Quad-core Cortex-A55 4G/32G Hardware Firewall Router Appliance is built to protect your data and keep traffic fast. It works as a powerful firewall and router in one compact box, so you can stop attacks before they reach your computers and enjoy reliable internet for all your devices.
Rockchip RK3568B2 Quad-core Cortex-A55 4G/32G Hardware Firewall Router Appliance
Small businesses often struggle with weak network security and limited bandwidth. When a breach happens, data loss and downtime can cost thousands. This appliance solves the problem by combining a fast Rockchip processor with a built-in firewall, giving you strong protection without sacrificing speed. The result is a stable, secure connection that lets you focus on work instead of worrying about network issues.
Benefits
- Fast quad-core CPU keeps traffic flowing even under heavy load.
- Integrated firewall blocks threats before they reach your devices.
- 4 GB RAM and 32 GB eMMC storage allow smooth operation of security rules.
- Multiple LAN ports let you connect several computers or switches.
- Supports Android 11, Ubuntu 20.04 and Debian 10 for flexible software choices.
Usages
The router is ideal for small offices that need a reliable internet gateway and a strong firewall. It works well in retail stores where point-of-sale systems require constant connectivity. It can also be used in remote sites that rely on a single WAN link and need VPN protection. Home offices benefit from the same security without the complexity of enterprise equipment.
Key Features
- Rockchip RK3568B2 quad-core Cortex-A55 up to 2.0 GHz.
- 4 GB LPDDR4 memory for fast processing.
- 32 GB eMMC storage plus TF card slot for extra space.
- 1 × WAN and 4 × LAN Gigabit Ethernet ports.
- Dual-band WiFi module (reserved) and optional Bluetooth.
- Mali-G52 GPU with HDMI output for monitoring.
- Mini PCIe slot with USB 3.0 signals, ready for 5G expansion.
- Two DB9 serial ports with RS485/RS422/RS232 switching.
- Two USB 2.0 front ports and one USB 3.0 rear port.
- DC 12 V power input with indicator LED.
- Metal chassis, 155 × 129.5 × 42.5 mm, black finish.
- Operating temperature 0 °C-60 °C, humidity 5%-95% non-condensing.
Specifications
| Processor |
|
| CPU |
Rockchip RK3568B2 Quad-core Cortex-A55 up to 2.0 GHz processor |
| Chipset |
Base on RK3568B2 SOC (Match with CK35H board for use) |
| Memory |
Onboard LPDDR4 4G memory |
| Display |
Integrated ARM Mali-G52 GPU, Support OpenGL ES 1.1/2.0/3.2, OpenCL 2.0, Vulkan 1.1, 1x HDMI |
| LAN |
1x WAN, 4x LAN |
| WiFi/Bluetooth |
1x WIFI (dual band)/Bluetooth module (reserved) |
| Storage |
|
| eMMC |
1x eMMC 32G |
| TF Card |
1x TF card |
| Expansion Slots |
|
| Mini PCIe |
1x mini PCIe (In build USB3.0 signal, support 5G) |

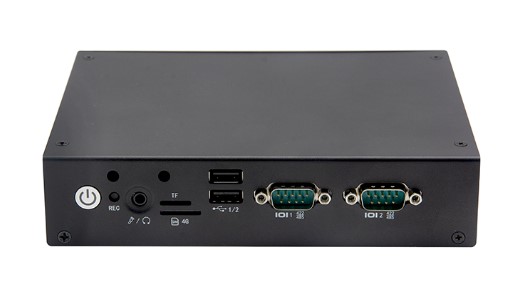

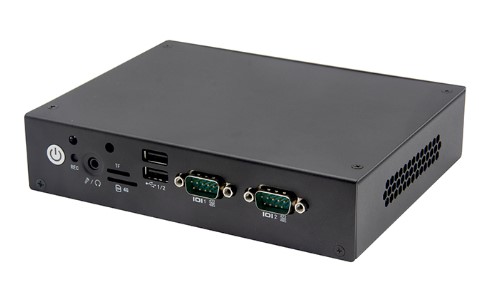

| Front I/O Interface |
|
| Serial Port |
2x DB9 (2x RS485/2x RS422/2x RS232 Jumper switch) |
| USB |
2x USB2.0 |
| SIM/TF Card |
1x SIM/TF card |
| Audio |
1x Line-out/MIC all in one |
| Burn Key |
1x Burn key |
| Power Indicator |
1x Power indicator |

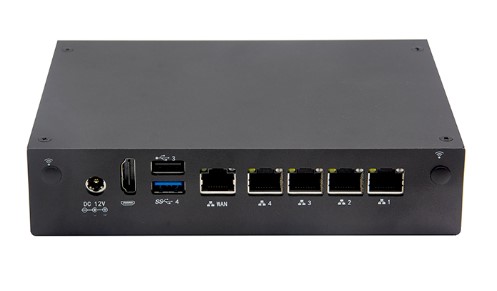

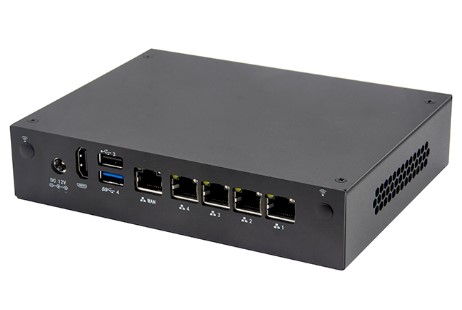

| Rear I/O Interface |
|
| Power Input |
1x DC 12 V input |
| HDMI |
1x HDMI |
| USB |
1x USB2.0 (First layer OTG), 1x USB3.0 |
| WAN |
1x RJ45 Gigabit Ethernet (WAN) |
| LAN |
4x RJ45 Gigabit Ethernet (LAN) |
| Power |
|
| Power Type |
DC 12 V input |
| Operating System |
|
| OS |
Android 11, Ubuntu 20.04, Debian 10 (Match with CK35H board for use) |
| Environment |
|
| Working Temp. |
0 ℃ to 60 ℃ |
| Storage Temp. |
-20 ℃ to 70 ℃ |
| Relative Humidity |
5%–95% (relative humidity, non-condensing) |
| Physical |
|
| Size |
155.0 × 129.5 × 42.5 mm |
| Materials |
Metal |
| Color |
Black color |
